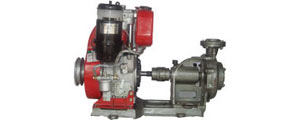

Pumps » Engine Pumps

  • Applications
  • Features
  • Technical Data
  • Dealing In
Used extensively at: -
Used for agricultural purposes, on construction sites, for damn projects, in bore wells, for removal of muddy water, fire fighting etc.
Design Highlights / Features
  • Light weight / Portable pump sets
  • Come in Petrol, Kerosene and Diesel models
  • Economical
  • ISI Mark, Strong brand
  • 4 Stroke, Air cooled engines
  • Easy to maintain and service
  • Available in high head, high discharge models
Model MK 12 Pumps Set MK-25 Pumps set 5520 5510
Engine Greaves Cotton Make Greaves Cotton Make Greaves Cotton Make Greaves Cotton Make
Type 4 stroke, Air cooled, Single Cylinder, Cylindrical Shaft 4 stroke, Air cooled, Single Cylinder, Cylindrical Shaft 4 stroke, Air cooled, Single Cylinder, Cylindrical Shaft 4 stroke, Air cooled, Single Cylinder, Cylindrical Shaft
Horsepower 2 HP 3 HP 5 HP 8.3 HP
RPM 3000 3000 3000 3000
Pumps set weight 33 kgs 49 kgs 55 kgs 114 kgs
Pumps Size 1" X 1" , 2" X 2" 2" X 1.5" , 2.5" X 2" 1" X 1" , 2" X 2" 1" X 1" , 2" X 2"
Coupling Type Monobloc Monobloc Monobloc and Coupled Monobloc and Coupled
Head Range 6 Meter to 21 Meter 6 Meter to 27 Meter 9 Meter to 45 Meter 17 Meter to 52 Meter
Discharge Range 120 LPM to 500 LPM 300 LPM to 1100 LPM 350 LPM to 2250 LPM 300 LPM to 850 LPM
Irrigation Capacity Up to 3 Acres Up to 5 Acres Up to 6 Acres Up to 10 Acres
Ignition Capacity Rope Start Rope Start Rope Start Rope / Electric Start
Fuel Petrol Start/ Kerosene Run Petrol Start/ Kerosene Run Diesel Diesel
Tank Capacity 2.75 Liters 4.5 Liters 4.5 Liters 5.5 Liters

Note : Models also available in 1500 RPM, 1800 RPM and 2600 RPM
           Due to continuous changes towards product improvement, technical data is subject to change.
